ONVIF 设备发现（网络摄像头）——实例笔记

嵌入式 ONVIF gSOAP 网络摄像机 IPC
Linux 嵌入式
Publish Date:   2019-12-03

相关配置

ONVIF官网：http://www.onvif.org/
gSOAP安装配置：gSOAP安装配置+使用案例参考+参考链接
操作系统：CentOS7

资料参考：

许振坪的ONVIF专栏：传送门
onvif开发之设备发现功能的实现
Linux下onvif服务端之发现设备
还有一个博文找不到网址了，如果网友发现可以私信补充。

代码实战

客户端

1、WS-Discovery的Ad hoc模式，使用多播（不使用gSOAP实现设备发现）

参考文章：ONVIF协议网络摄像机（IPC）客户端程序开发（7）：设备搜索
源码如下 search_c.c：

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#ifdef WIN32
#include <winsock.h>
#else
#include <sys/socket.h>
#include <netinet/in.h>
#include <netdb.h>
#include <arpa/inet.h>
#include <unistd.h>
#endif

/* 从技术层面来说，通过单播、多播、广播三种方式都能探测到IPC，但多播最具实用性*/
#define COMM_TYPE_UNICAST         1                                             // 单播
#define COMM_TYPE_MULTICAST       2                                             // 多播
#define COMM_TYPE_BROADCAST       3                                             // 广播
#define COMM_TYPE                 COMM_TYPE_MULTICAST

/* 发送探测消息（Probe）的目标地址、端口号 */
#if COMM_TYPE == COMM_TYPE_UNICAST
    #define CAST_ADDR "100.100.100.15"                                          // 单播地址，预先知道的IPC地址
#elif COMM_TYPE == COMM_TYPE_MULTICAST
    #define CAST_ADDR "239.255.255.250"                                         // 多播地址，固定的239.255.255.250
#elif COMM_TYPE == COMM_TYPE_BROADCAST
    #define CAST_ADDR "100.100.100.255"                                         // 广播地址
#endif

#define CAST_PORT 3702                                                          // 端口号

/* 以下几个宏是为了socket编程能够跨平台，这几个宏是从gsoap中拷贝来的 */
#ifndef SOAP_SOCKET
# ifdef WIN32
#  define SOAP_SOCKET SOCKET
#  define soap_closesocket(n) closesocket(n)
# else
#  define SOAP_SOCKET int
#  define soap_closesocket(n) close(n)
# endif
#endif

#if defined(_AIX) || defined(AIX)
# if defined(_AIX43)
#  define SOAP_SOCKLEN_T socklen_t
# else
#  define SOAP_SOCKLEN_T int
# endif
#elif defined(SOCKLEN_T)
# define SOAP_SOCKLEN_T SOCKLEN_T
#elif defined(__socklen_t_defined) || defined(_SOCKLEN_T) || defined(CYGWIN) || defined(FREEBSD) || defined(__FreeBSD__) || defined(OPENBSD) || defined(__QNX__) || defined(QNX) || defined(OS390) || defined(__ANDROID__) || defined(_XOPEN_SOURCE)
# define SOAP_SOCKLEN_T socklen_t
#elif defined(IRIX) || defined(WIN32) || defined(__APPLE__) || defined(SUN_OS) || defined(OPENSERVER) || defined(TRU64) || defined(VXWORKS) || defined(HP_UX)
# define SOAP_SOCKLEN_T int
#elif !defined(SOAP_SOCKLEN_T)
# define SOAP_SOCKLEN_T size_t
#endif

#ifdef WIN32
#define SLEEP(n)    Sleep(1000 * (n))
#else
#define SLEEP(n)    sleep((n))
#endif

/* 探测消息(Probe)，这些内容是ONVIF Device Test Tool 15.06工具搜索IPC时的Probe消息，通过Wireshark抓包工具抓包到的 */
const char *probe = "<?xml version=\"1.0\" encoding=\"utf-8\"?><Envelope xmlns:dn=\"http://www.onvif.org/ver10/network/wsdl\" xmlns=\"http://www.w3.org/2003/05/soap-envelope\"><Header><wsa:MessageID xmlns:wsa=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\">uuid:fc0bad56-5f5a-47f3-8ae2-c94a4e907d70</wsa:MessageID><wsa:To xmlns:wsa=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\">urn:schemas-xmlsoap-org:ws:2005:04:discovery</wsa:To><wsa:Action xmlns:wsa=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\">http://schemas.xmlsoap.org/ws/2005/04/discovery/Probe</wsa:Action></Header><Body><Probe xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\" xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\" xmlns=\"http://schemas.xmlsoap.org/ws/2005/04/discovery\"><Types>dn:NetworkVideoTransmitter</Types><Scopes /></Probe></Body></Envelope>";

int main(int argc, char **argv)
{
    int ret;
    int optval;
    SOAP_SOCKET s;
    SOAP_SOCKLEN_T len;
    char recv_buff[4096] = {0};
    struct sockaddr_in multi_addr;
    struct sockaddr_in client_addr;

#ifdef WIN32
    WSADATA wsaData;
    if( WSAStartup(MAKEWORD(2,2), &wsaData) != 0 ) {                             // 初始化Windows Sockets DLL
        printf("Could not open Windows connection.\n");
        return 0;
    }
    if ( LOBYTE(wsaData.wVersion) != 2 || HIBYTE(wsaData.wVersion) != 2 ) {
        printf("the version of WinSock DLL is not 2.2.\n");
        return 0;
    }
#endif

    s = socket(AF_INET, SOCK_DGRAM, 0);                                         // 建立数据报套接字
    if (s < 0) {
        perror("socket error");
        return -1;
    }

#if COMM_TYPE == COMM_TYPE_BROADCAST
    optval = 1;
    ret = setsockopt(s, SOL_SOCKET, SO_BROADCAST, (const char*)&optval, sizeof(int));
#endif

    multi_addr.sin_family = AF_INET;                                            // 搜索IPC：使用UDP向指定地址发送探测消息(Probe)
    multi_addr.sin_port = htons(CAST_PORT);
    multi_addr.sin_addr.s_addr = inet_addr(CAST_ADDR);
    ret = sendto(s, probe, strlen(probe), 0, (struct sockaddr*)&multi_addr, sizeof(multi_addr));
    if (ret < 0) {
        soap_closesocket(s);
        perror("sendto error");
        return -1;
    }
    printf("Send Probe message to [%s:%d]\n\n", CAST_ADDR, CAST_PORT);
    SLEEP(1);

    for (;;) {                                                                  // 接收IPC的应答消息(ProbeMatch)
        len = sizeof(client_addr);
        memset(recv_buff, 0, sizeof(recv_buff));
        memset(&client_addr, 0, sizeof(struct sockaddr));
        ret = recvfrom(s, recv_buff, sizeof(recv_buff) - 1, 0, (struct sockaddr*)&client_addr, &len);
        printf("===Recv ProbeMatch from [%s:%d]===\n%s\n\n",  inet_ntoa(client_addr.sin_addr), ntohs(client_addr.sin_port), recv_buff);
        SLEEP(1);
    }
    soap_closesocket(s);

    return 0;
}

Linux编译： gcc search_c.c ， Windows下编译： gcc search_c.c -lws2_32

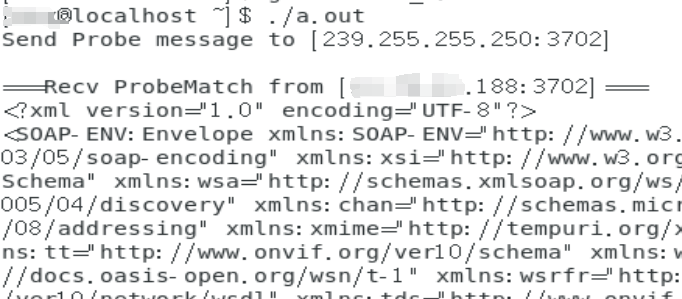

Windows下效果和Linux下效果一样。
在这里插入图片描述
我Linux是用的虚拟机，所以需要关闭防火墙，不然搜不到 systemctl stop iptables.service 或 service iptables stop

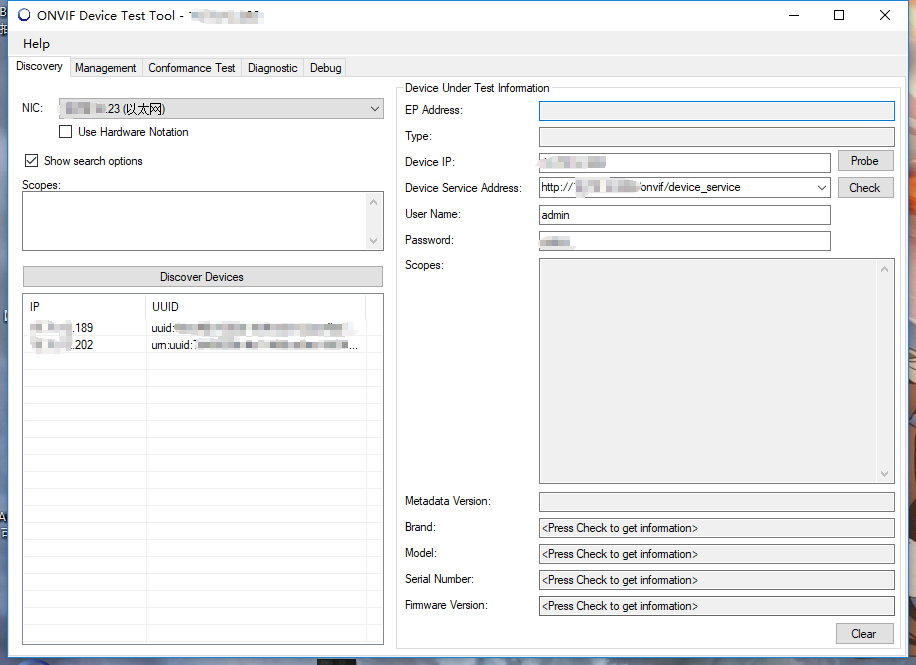

我们也使用 ONVIF Device Test Tool在这里插入图片描述，测一下
在这里插入图片描述

2、使用gSOAP生成ONVIF框架，编写客户端

如何生成ONVIF框架参考：ONVIF协议网络摄像机（IPC）客户端程序开发（6）：使用gSOAP生成ONVIF框架代码，原文没有生成soapServer.c，我在评论里面写了如何修改，可以参考。
部分文件下载于：GitHub
参考文章：onvif开发之设备发现功能的实现
我做的相关改动都写在评论区了，server编译通不过，但client是可行的。

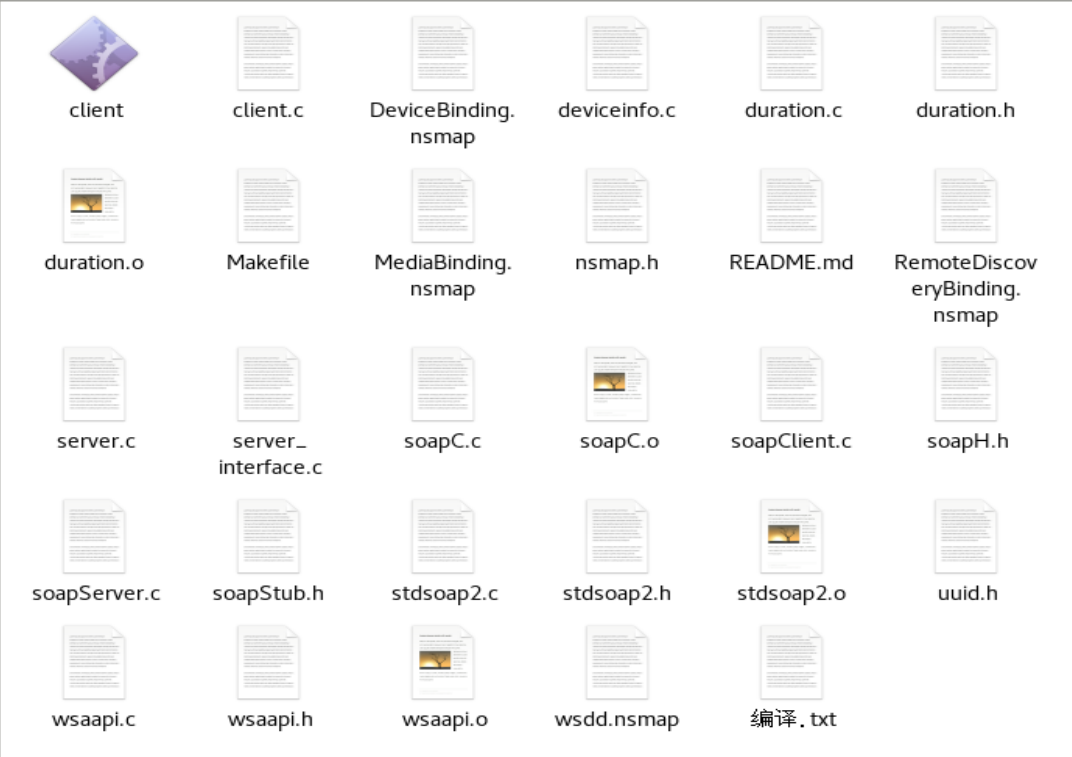

在这里插入图片描述
client.c源码如下：

#include <stdio.h>
#include <stdlib.h>
#include <uuid/uuid.h>
#include "soapH.h"
#include "soapStub.h"
#include "wsdd.nsmap"
#include "wsaapi.h"

#define MULTICAST_ADDRESS "soap.udp://239.255.255.250:3702"

int main()
{
    printf("[%s][%d][%s][%s] start \n", __FILE__, __LINE__, __TIME__, __func__);

    int result = 0;
    wsdd__ProbeType req;
    struct __wsdd__ProbeMatches resp;
    wsdd__ScopesType sScope;
    struct SOAP_ENV__Header header;

    struct soap *soap;
    soap = soap_new();
    if(NULL == soap )
    {
        printf("sopa new error\r\n");
        return -1;
    }

    soap->recv_timeout = 10;
    soap_set_namespaces(soap, namespaces);
    soap_default_SOAP_ENV__Header(soap, &header);

    uuid_t uuid;
    char guid_string[100];
    uuid_generate(uuid);
    uuid_unparse(uuid, guid_string);

    header.wsa__MessageID = guid_string;
    header.wsa__To = "urn:schemas-xmlsoap-org:ws:2005:04:discovery";
    header.wsa__Action = "http://schemas.xmlsoap.org/ws/2005/04/discovery/Probe";
    soap->header = &header;

    soap_default_wsdd__ScopesType(soap, &sScope);
    sScope.__item = "";
    soap_default_wsdd__ProbeType(soap, &req);
    req.Scopes = &sScope;
    req.Types = "dn:NetworkVideoTransmitter";
 //"dn:NetworkVideoTransmitter";

    int i = 0;
       result = soap_send___wsdd__Probe(soap, MULTICAST_ADDRESS, NULL, &req);
       while(result == SOAP_OK)
       {
        result = soap_recv___wsdd__ProbeMatches(soap, &resp);
        if(result == SOAP_OK)
        {
            if(soap->error)
            {
                printf("soap error 1: %d, %s, %s\n", soap->error, *soap_faultcode(soap), *soap_faultstring(soap));
                result = soap->error;
            }
            else
            {
                printf("guog *********************************************\r\n");
                if(soap->header->wsa__MessageID)
                {
                    printf("MessageID   : %s\r\n", soap->header->wsa__MessageID);
                }
                if(soap->header->wsa__RelatesTo && soap->header->wsa__RelatesTo->__item)
                {
                    printf("RelatesTo   : %s\r\n", soap->header->wsa__RelatesTo->__item);
                }
                if(soap->header->wsa__To)
                {
                    printf("To          : %s\r\n", soap->header->wsa__To);
                }
                if(soap->header->wsa__Action)
                {
                    printf("Action      : %s\r\n", soap->header->wsa__Action);
                }

                for(i = 0; i < resp.wsdd__ProbeMatches->__sizeProbeMatch; i++)
                {
                    printf("__sizeProbeMatch        : %d\r\n", resp.wsdd__ProbeMatches->__sizeProbeMatch);
                    printf("wsa__EndpointReference       : %p\r\n", resp.wsdd__ProbeMatches->ProbeMatch->wsa__EndpointReference);
                    printf("Target EP Address       : %s\r\n", resp.wsdd__ProbeMatches->ProbeMatch->wsa__EndpointReference.Address);
                    printf("Target Type             : %s\r\n", resp.wsdd__ProbeMatches->ProbeMatch->Types);
                    printf("Target Service Address  : %s\r\n", resp.wsdd__ProbeMatches->ProbeMatch->XAddrs);
                    printf("Target Metadata Version : %d\r\n", resp.wsdd__ProbeMatches->ProbeMatch->MetadataVersion);
                    if(resp.wsdd__ProbeMatches->ProbeMatch->Scopes)
                    {
                        printf("Target Scopes Address   : %s\r\n", resp.wsdd__ProbeMatches->ProbeMatch->Scopes->__item);
                    }
                }
            }
        }
        else if (soap->error)
        {
            printf("[%d] soap error 2: %d, %s, %s\n", __LINE__, soap->error, *soap_faultcode(soap), *soap_faultstring(soap));
            result = soap->error;
        }
       }

    soap_destroy(soap);
    soap_end(soap);
    soap_free(soap);

    printf("[%d] guog discover over !\n", __LINE__);

    return result;
}

Linux下编译： gcc -o client client.c stdsoap2.c soapC.c soapClient.c wsaapi.c duration.c -luuid
没有libuuid库，可自行安装，命令仅供参考 sudo apt-get install uuid-dev

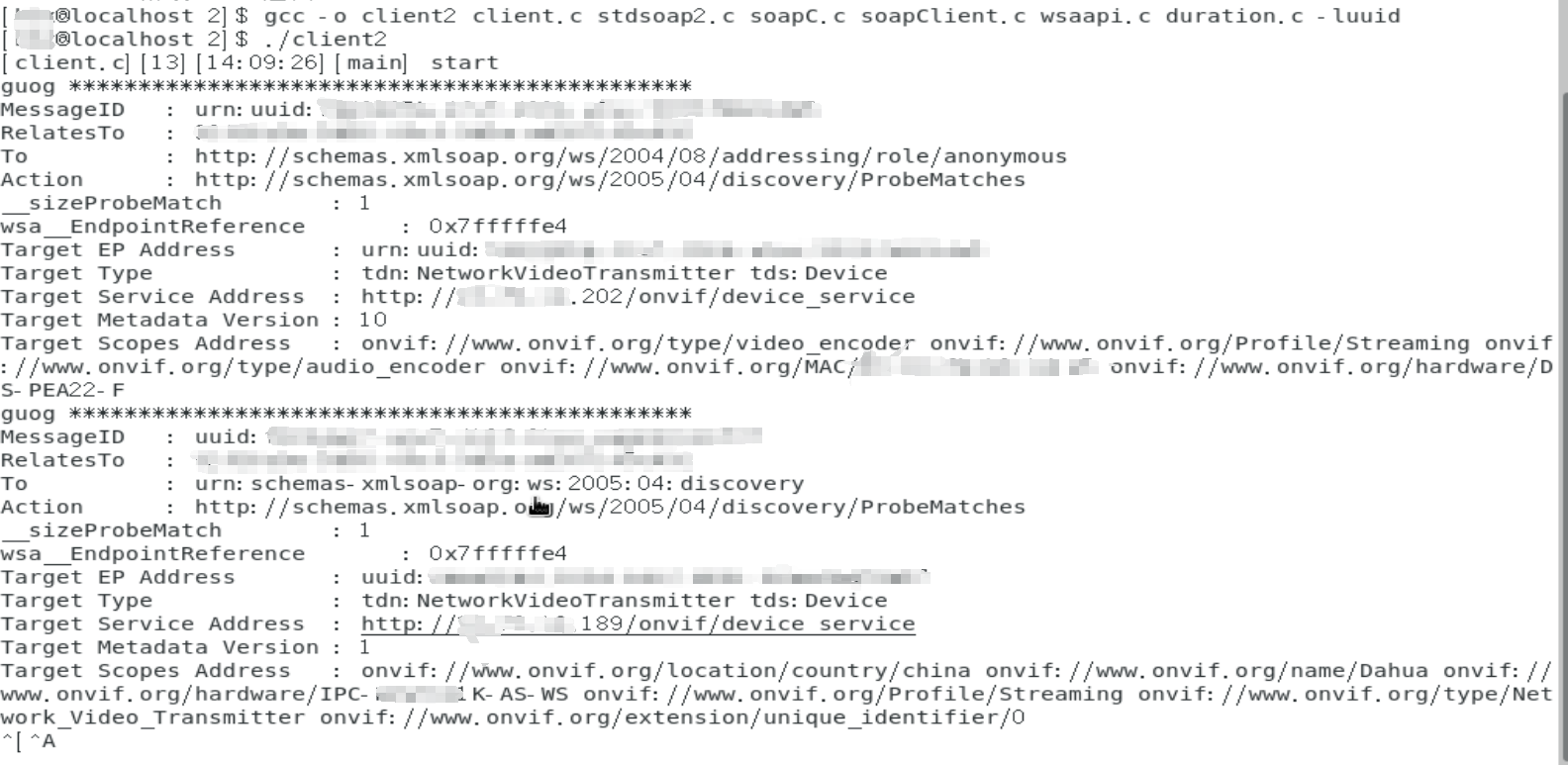

效果如图：
在这里插入图片描述

服务端

1、不使用gSOAP，虚拟机伪装成ipc

文章参考：Linux下onvif服务端之发现设备
代码如下 ipc_server_c.c：

#include <sys/types.h>
#include <sys/socket.h>
#include <arpa/inet.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
//#include <netdb.h>
//#include <errno.h>
//#include <uuid/uuid.h>

#define BUFLEN 4095

int main (int argc, char **argv)
{
    char uu_buf[1024]={0};
    char *cust_uuid = 0;

    struct sockaddr_in groupcast_addr,the_member;
    int sockfd;
    unsigned char loop;
    char recmsg[BUFLEN + 1];
    unsigned int socklen, n;
    struct ip_mreq mreq;
#if 0
    char *msg="<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n\
<SOAP-ENV:Envelope xmlns:SOAP-ENV=\"http://www.w3.org/2003/05/soap-envelope\" xmlns:SOAP-ENC=\"http://www.w3.org/2003/05/soap-encoding\" xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\" xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\" xmlns:wsa=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\" xmlns:wsdd=\"http://schemas.xmlsoap.org/ws/2005/04/discovery\" xmlns:chan=\"http://schemas.microsoft.com/ws/2005/02/duplex\" xmlns:wsa5=\"http://www.w3.org/2005/08/addressing\" xmlns:xmime=\"http://tempuri.org/xmime.xsd\" xmlns:xop=\"http://www.w3.org/2004/08/xop/include\" xmlns:tt=\"http://www.onvif.org/ver10/schema\" xmlns:wsrfbf=\"http://docs.oasis-open.org/wsrf/bf-2\" xmlns:wstop=\"http://docs.oasis-open.org/wsn/t-1\" xmlns:wsrfr=\"http://docs.oasis-open.org/wsrf/r-2\" xmlns:tdn=\"http://www.onvif.org/ver10/network/wsdl\" xmlns:tds=\"http://www.onvif.org/ver10/device/wsdl\" xmlns:tev=\"http://www.onvif.org/ver10/events/wsdl\" xmlns:wsnt=\"http://docs.oasis-open.org/wsn/b-2\" xmlns:tptz=\"http://www.onvif.org/ver20/ptz/wsdl\" xmlns:trt=\"http://www.onvif.org/ver10/media/wsdl\">\n\
<SOAP-ENV:Header>\n\
<wsa:MessageID>uuid:2419d68a-2dd2-21b2-a205-4A69A95DB56D</wsa:MessageID>\n\
<wsa:RelatesTo>uuid:251984b5-d773-4d2e-a21d-d248cdd2eebf</wsa:RelatesTo>\n\
<wsa:To SOAP-ENV:mustUnderstand=\"true\">http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous</wsa:To>\n\
<wsa:Action SOAP-ENV:mustUnderstand=\"true\">http://schemas.xmlsoap.org/ws/2005/04/discovery/ProbeMatches</wsa:Action>\n\
</SOAP-ENV:Header>\n\
<SOAP-ENV:Body>\n\
<wsdd:ProbeMatches>\n\
<wsdd:ProbeMatch>\n\
<wsa:EndpointReference>\n\
<wsa:Address>urn:uuid:2419d68a-2dd2-21b2-a205-4A69A95DB56D</wsa:Address>\n\
<wsa:ReferenceProperties />\n\
<wsa:ReferenceParameters />\n\
<wsa:PortType>ttl</wsa:PortType>\n\
</wsa:EndpointReference>\n\
<wsdd:Types>tds:Device</wsdd:Types>\n\
<wsdd:Scopes>onvif://www.onvif.org/type/NetworkVideoTransmitter\r\nonvif://www.onvif.org/name/IPC_2802222\r\nonvif://www.onvif.org/location/Country/China</wsdd:Scopes>\n\
<wsdd:XAddrs>http://192.168.42.103:5000/onvif/device_service</wsdd:XAddrs>\n\
<wsdd:MetadataVersion>1</wsdd:MetadataVersion>\n\</wsdd:ProbeMatch>\n\
</wsdd:ProbeMatches>\n\
</SOAP-ENV:Body>\n\
</SOAP-ENV:Envelope>\n\n";
#endif

    char *aa= "<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n\
<SOAP-ENV:Envelope xmlns:SOAP-ENV=\"http://www.w3.org/2003/05/soap-envelope\" xmlns:SOAP-ENC=\"http://www.w3.org/2003/05/soap-encoding\" xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\" xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\" xmlns:wsa=\"http://schemas.xmlsoap.org/ws/2004/08/addressing\" xmlns:wsdd=\"http://schemas.xmlsoap.org/ws/2005/04/discovery\" xmlns:chan=\"http://schemas.microsoft.com/ws/2005/02/duplex\" xmlns:wsa5=\"http://www.w3.org/2005/08/addressing\" xmlns:xmime=\"http://tempuri.org/xmime.xsd\" xmlns:xop=\"http://www.w3.org/2004/08/xop/include\" xmlns:tt=\"http://www.onvif.org/ver10/schema\" xmlns:wsrfbf=\"http://docs.oasis-open.org/wsrf/bf-2\" xmlns:wstop=\"http://docs.oasis-open.org/wsn/t-1\" xmlns:wsrfr=\"http://docs.oasis-open.org/wsrf/r-2\" xmlns:tdn=\"http://www.onvif.org/ver10/network/wsdl\" xmlns:tds=\"http://www.onvif.org/ver10/device/wsdl\" xmlns:tev=\"http://www.onvif.org/ver10/events/wsdl\" xmlns:wsnt=\"http://docs.oasis-open.org/wsn/b-2\" xmlns:tptz=\"http://www.onvif.org/ver20/ptz/wsdl\" xmlns:trt=\"http://www.onvif.org/ver10/media/wsdl\">\n\
<SOAP-ENV:Header>\n\
<wsa:MessageID>uuid:2419d68a-2dd2-21b2-a205-4A69A95DB56D</wsa:MessageID>\n\
<wsa:RelatesTo>uuid:";

    char *bb = "</wsa:RelatesTo>\n\
<wsa:To SOAP-ENV:mustUnderstand=\"true\">http://schemas.xmlsoap.org/ws/2004/08/addressing/role/anonymous</wsa:To>\n\
<wsa:Action SOAP-ENV:mustUnderstand=\"true\">http://schemas.xmlsoap.org/ws/2005/04/discovery/ProbeMatches</wsa:Action>\n\
</SOAP-ENV:Header>\n\
<SOAP-ENV:Body>\n\
<wsdd:ProbeMatches>\n\
<wsdd:ProbeMatch>\n\
<wsa:EndpointReference>\n\
<wsa:Address>urn:uuid:2419d68a-2dd2-21b2-a205-4A69A95DB56D</wsa:Address>\n\
<wsa:ReferenceProperties />\n\
<wsa:ReferenceParameters />\n\
<wsa:PortType>ttl</wsa:PortType>\n\
</wsa:EndpointReference>\n\
<wsdd:Types>tds:Device</wsdd:Types>\n\
<wsdd:Scopes>onvif://www.onvif.org/type/NetworkVideoTransmitter\r\nonvif://www.onvif.org/name/IPC_2802222\r\nonvif://www.onvif.org/location/Country/China</wsdd:Scopes>\n\
<wsdd:XAddrs>http://192.168.42.100:5000/onvif/device_service</wsdd:XAddrs>\n\
<wsdd:MetadataVersion>1</wsdd:MetadataVersion>\n\</wsdd:ProbeMatch>\n\
</wsdd:ProbeMatches>\n\
</SOAP-ENV:Body>\n\
</SOAP-ENV:Envelope>\n\n";

    /* 创建 socket 用于UDP通讯 */
    sockfd = socket (AF_INET, SOCK_DGRAM, 0);
    if (sockfd < 0)
    {
        printf ("socket creating err in udptalk\n");
        exit (1);
    }
    /* 设置要加入组播的地址 */
    bzero(&mreq, sizeof (struct ip_mreq));

    inet_pton(AF_INET,"239.255.255.250",&the_member.sin_addr);
    /* 设置组地址 */
    bcopy (&the_member.sin_addr.s_addr, &mreq.imr_multiaddr.s_addr, sizeof (struct in_addr));
    /* 设置发送组播消息的源主机的地址信息 */
    mreq.imr_interface.s_addr = htonl (INADDR_ANY);
    /* 把本机加入组播地址，即本机网卡作为组播成员，只有加入组才能收到组播消息 */
    //if (setsockopt(sockfd, IPPROTO_IP, IP_ADD_MEMBERSHIP | IP_MULTICAST_LOOP, &mreq,sizeof (struct ip_mreq)) == -1)
    if (setsockopt(sockfd, IPPROTO_IP, IP_ADD_MEMBERSHIP , &mreq,sizeof (struct ip_mreq)) == -1)
    {
        perror ("setsockopt");
        exit (-1);
    }
    loop = 0;
    if (setsockopt(sockfd, IPPROTO_IP, IP_MULTICAST_LOOP, &loop,sizeof (loop)) == -1)
    {
        printf("IP_MULTICAST_LOOP set fail!\n");
    }

    socklen = sizeof (struct sockaddr_in);
    memset (&groupcast_addr, 0, socklen);
    groupcast_addr.sin_family = AF_INET;
    groupcast_addr.sin_port = htons (3702);
    inet_pton(AF_INET, "239.255.255.250", &groupcast_addr.sin_addr);
    /* 绑定自己的端口和IP信息到socket上 */
    if (bind(sockfd, (struct sockaddr *) &groupcast_addr,sizeof (struct sockaddr_in)) == -1)
    {
        printf ("Bind error\n");
        exit (0);
    }

    while (1)
    {
        bzero (recmsg, BUFLEN + 1);
        n = recvfrom (sockfd, recmsg, BUFLEN, 0, (struct sockaddr *) &the_member, &socklen);
        if (n < 0)
        {
            printf ("recvfrom err in udptalk!\n");
            exit (4);
        }
        else{
            recmsg[n] = 0;
            printf ("recv:[%s]\n\n", recmsg);
            printf("ip:%s\n",inet_ntoa(the_member.sin_addr));
            printf("port:%d\n", ntohs(the_member.sin_port));
        }

        cust_uuid = strstr(recmsg, "uuid:"); //获取recmsg字符串中 子字符串"uuid:"的位置
        if (cust_uuid == 0)
        {
            printf("uuid: err!\n");
            return 0;
        }
        cust_uuid += 5;   //获取接收的uuid的值
        strncpy(uu_buf, cust_uuid, 36);
        printf("%s\n",uu_buf);

        memset(recmsg,0,sizeof(recmsg));
        strcpy(recmsg, aa);
        strcat(recmsg, uu_buf);
        strcat(recmsg, bb);
        if (sendto(sockfd, recmsg, strlen (recmsg), 0, (struct sockaddr *) &the_member, sizeof (the_member)) < 0)
        {
            printf ("sendto error!\n");
            exit (3);
        }
        printf ("send ok\n");
        break;
    }
}

Linux下编译：gcc ipc_server_c.c -o ipc_server
在这里插入图片描述
直接运行
在这里插入图片描述
现在我们用 ONVIF Device Test Tool，测试一下
在这里插入图片描述
ONVIF Device Test Tool 搜索后，服务端就打印了这些信息
在这里插入图片描述
ifconfig查看下虚拟机ip地址
在这里插入图片描述
同样可以被我们之前写的 客户端 搜索到
在这里插入图片描述

2、使用gSOAP生成ONVIF框架，编写服务端

文件下载于：GitHub
参考文章：onvif服务器篇之onvif 服务器框架的搭建
碰到的问题同样写在评论区，可自行查看。
在这里插入图片描述
修改Makefile，GSOAP_ROOT改成自己的soap路径
在这里插入图片描述

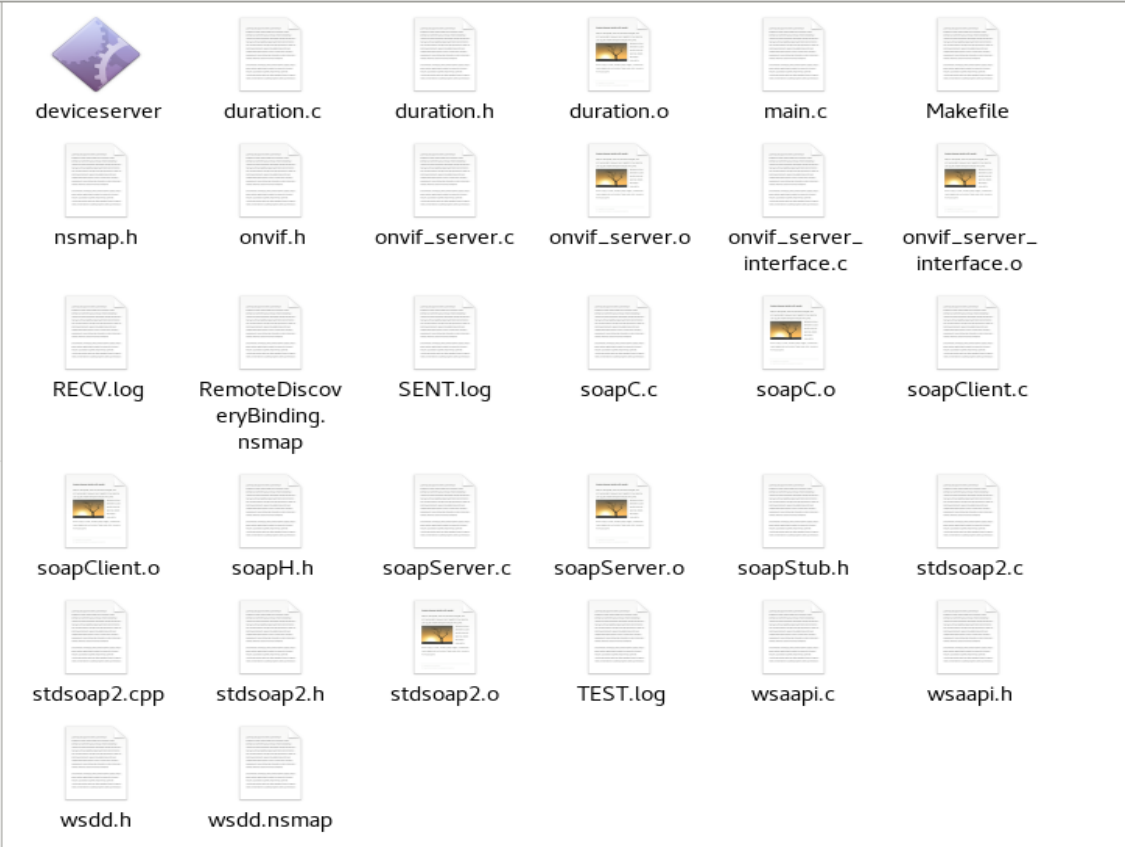

终端 make 编译。生成 deviceserver
我们直接运行 ./deviceserver
在这里插入图片描述
我们同样用 ONVIF Device Test Tool，搜索一下
在这里插入图片描述

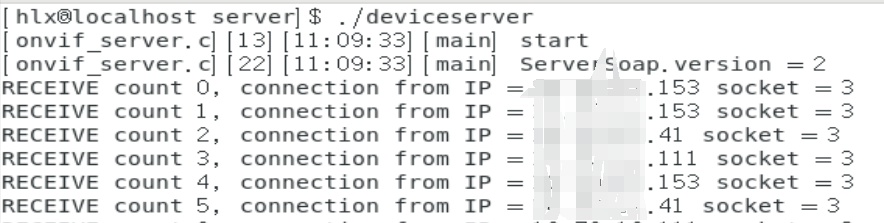

服务端也有所反应
在这里插入图片描述

那么本次的服务端和客户端都测试完毕了。网上资料不多，真的进行的十分困难。

相关链接

ONVIF官网：http://www.onvif.org/
gSOAP安装配置：gSOAP安装配置+使用案例参考+参考链接
许振坪的ONVIF专栏
onvif开发之设备发现功能的实现
Linux下onvif服务端之发现设备
ONVIF协议网络摄像机（IPC）客户端程序开发（7）：设备搜索
ONVIF协议网络摄像机（IPC）客户端程序开发（6）：使用gSOAP生成ONVIF框架代码
onvif开发之设备发现功能的实现
Linux下onvif服务端之发现设备
GitHub服务端下载
onvif服务器篇之onvif 服务器框架的搭建
ONVIF Device Test Tool

Author: Ikaros
Link: https://github.com/Ikaros-521/ikaros-521.github.io/2019/12/03/onvif-she-bei-fa-xian-wang-luo-she-xiang-tou-shi-li-bi-ji/
Reprint policy: All articles in this blog are used except for special statements CC BY 4.0 reprint polocy. If reproduced, please indicate source Ikaros !
嵌入式 ONVIF gSOAP 网络摄像机 IPC
赏
评论
 Previous
使用ajax+cgi，实现前后端数据交互 使用ajax+cgi，实现前后端数据交互
相关说明操作系统：CentOS7Web服务器：BOA语言：HTML+JS+C演示了网页如何把数据通过AJAX发给后台CGI和后台CGI如何把数据返回到网页的指定控件显示源码参考：AJAX_CGIBOA的搭建参考：Linux下嵌入式Web服务
2019-12-04 Linux 嵌入式
嵌入式 C Linux ajax cgi
Next
Linux驱动——学习笔记 Linux驱动——学习笔记
一、烧写Linux系统到inand1、烧写u-boot到inand tftp 30008000 u-boot.bin movi write u-boot 30008000 2、烧写Linux内核到inand tftp
2019-12-01 Linux 嵌入式
嵌入式 Linux 驱动
  TOC
